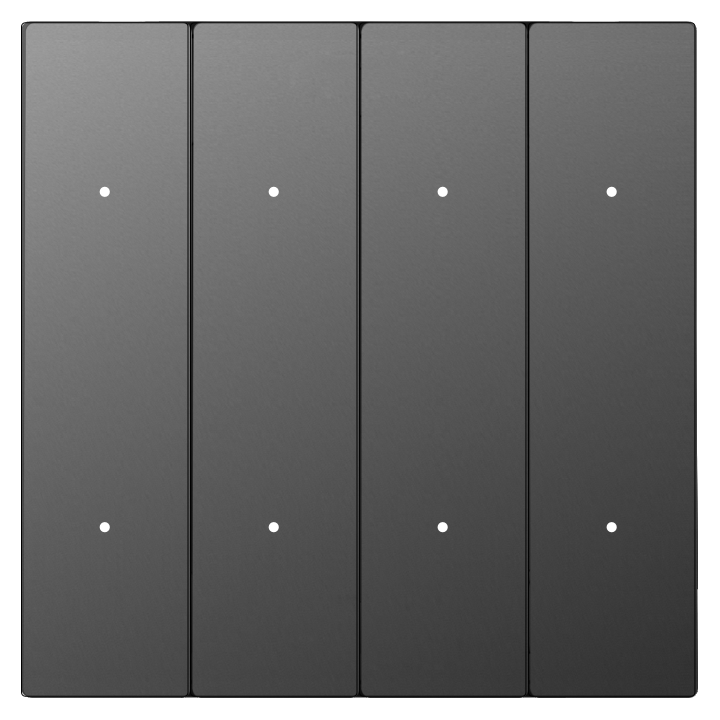

SWITCHxA

DALI-2 Multifunctional Switch Module

  • ● DALI-2 switch module with programmable pushbuttons according to IEC62386-101, IEC62386-102, IEC62386-103 and IEC62386-301.
  • ● Can work in 'input device' or 'application controller' mode.
  • ● Different DALI commands can be assigned to each button.
  • ● Multi-master capable, multiple modules can be installed on one DALI-line.
  • ● In addition to the standard DALI commands, the application controller also supports DALI DT8 TC control.
  • ● short button press, long button press (with repetition for dimming) and 'toggle' are supported.
  • ● Easy configuration via CORSL DALI USB interface and DALI-Config Software Tool or APP(DaliConfig for Android and iOS).
DALI-2 RM5 Relay Module

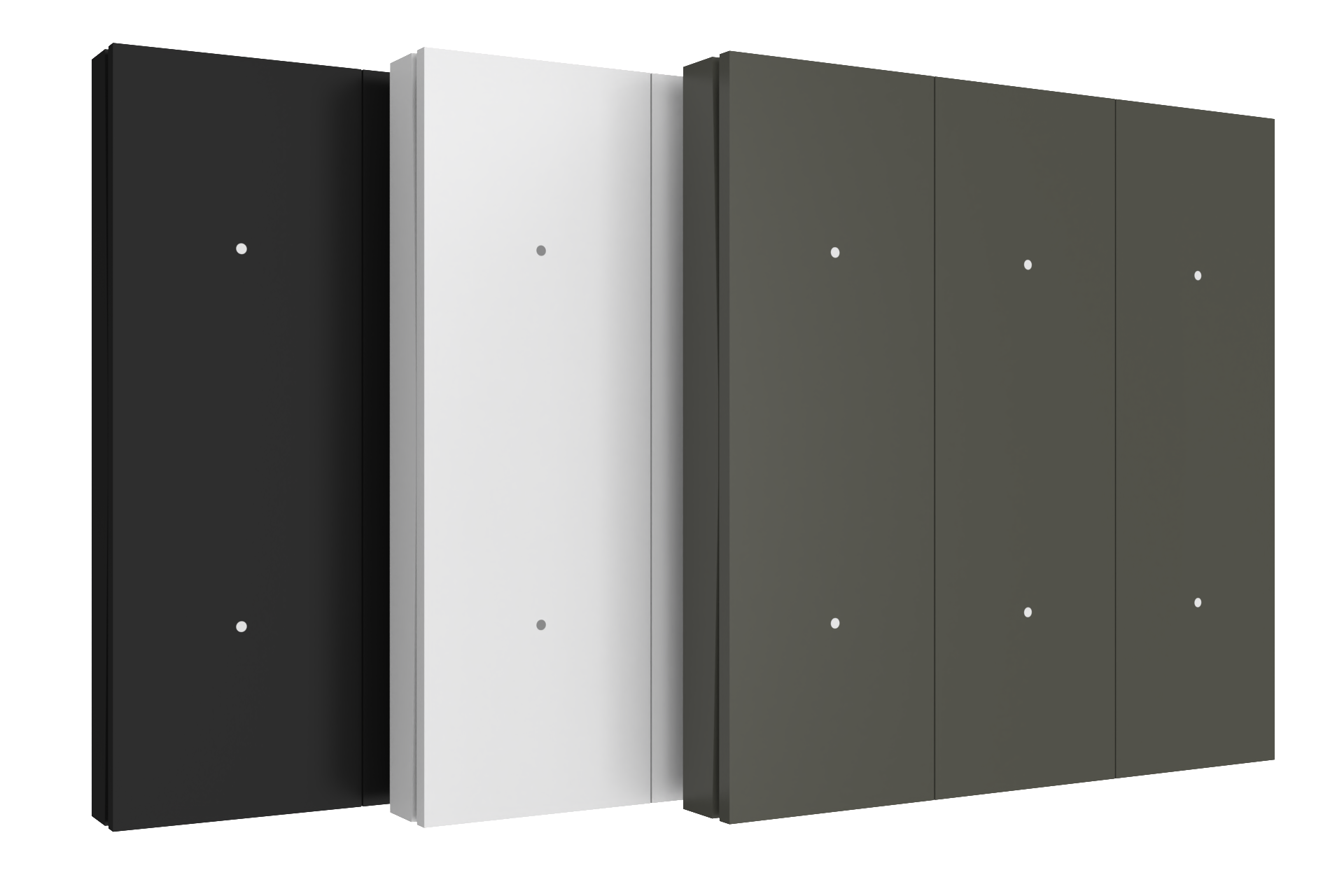

Product types
Art. Nr.: 8980080121120SWITCH6A (NFC) Black✓
Art. Nr.: 8980080221120SWITCH6A (NFC) Gray✓
Art. Nr.: 8980080321120SWITCH6A (NFC) White✓
Art. Nr.: 8980090121120SWITCH8A (NFC) Black✓
Art. Nr.: 8980090221120SWITCH8A (NFC) Gray✓
Art. Nr.: 8980090321120SWITCH8A (NFC) White✓
Art. Nr.: 8980080121122SWITCH6A Black✓
Art. Nr.: 8980080221122SWITCH6A Gray✓
Art. Nr.: 8980080321122SWITCH6A White✓
Art. Nr.: 8980090121122SWITCH8A Black✓
Art. Nr.: 8980090221122SWITCH8A Gray✓
Art. Nr.: 8980090321122SWITCH8A White✓
Specifications
Electrical Data
Supplyvia DALI signal line
typ. current consumption DALI (at 16.5V, SWITCH6A)4 mA
typ. current consumption DALI (at 16.5V, SWITCH8A)5 mA
Max. current consumption DALI (Inrush current at 22.5 V)16 mA
DALI-2 addresses1
Environmental Conditions
Storing and transportation temperature-20°C ... +75°C
Operational ambient temperature-20°C ... +75°C
rel. humidity, none condensing15% ... 90%
Terminals
Connection typescrew connector
Wire size solid core0,5 ... 1,5 mm2 (20 ... 16AWG)
Wire size fine wired0,5 ... 1,5 mm2 (20 ... 16AWG)
Wire size using wire end ferrule0,3 ... 1,5 mm2
Stripping length5~6 mm
Standards
DALIIEC62386-101, IEC62386-102, IEC62386-103, IEC62386-301
EMCEN IEC 61547, EN IEC 55015
ROHSIEC 62321
MarkingsDALI-2

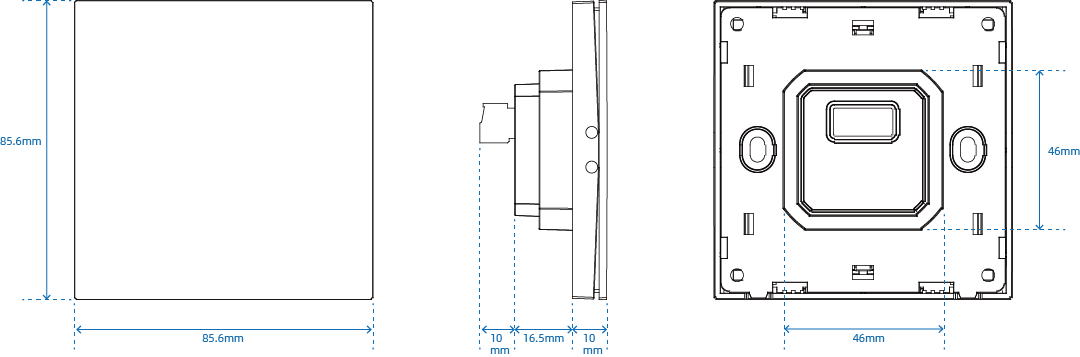

Dimensions
Installation Diagram
Typical Application
Installation Diagram
NFC antenna location
Installation Diagram Installation Diagram
