ROT-P

DALI-2 Rotary Switch

● DALI-2 rotary and push button with DALI output for fast and precise control of switching, brightness, or colour temperature.

● Multiple operating modes for dimming and switching.

● can work in 'input device' or 'application controller' mode:

➜ input device : generate event messages that are interpreted and processed by higher-level control units (support IEC62386-103).higher-level control units (support IEC62386-103) gives direct DALI control commands that are immediately executed by the DALI drivers.
➜ application controller : gives direct DALI control commands that are immediately executed by the DALI drivers.

● Individual DALI Commands and operating modes can be assigned to the push and rotary button.

● In addition to the standard DALI commands, the application controller also supports DALI DT8 TC control.

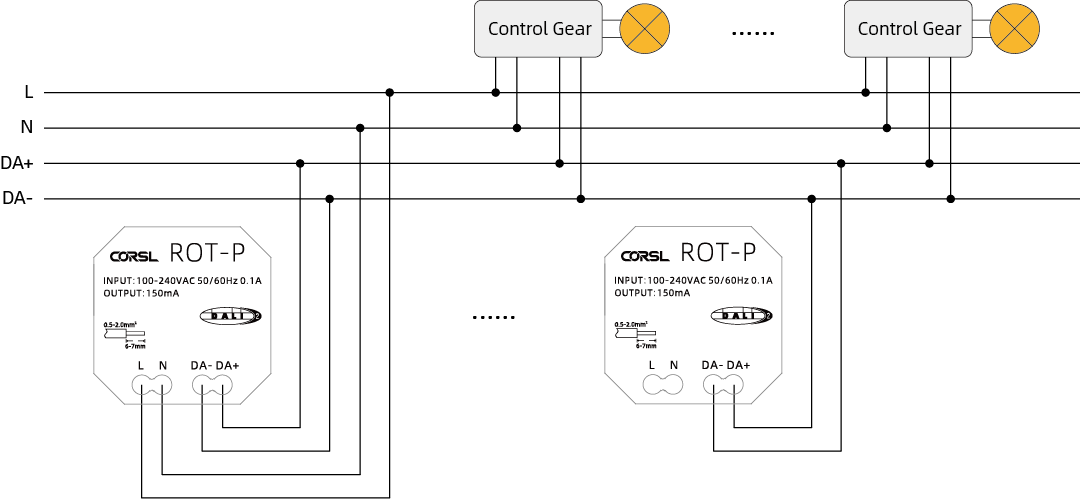

● When the 'L' and 'N' of the ROT-P is inactive, The DALI-2 ROT-P module is connected and supplied directly by the DALI-line (typ. current consumption: 2 mA).A DALI bus power supply (e.g. DALI PS) is required.

● When 'L' and 'N' connected to AC mains,150mA integrated DALI bus power can supply on the DALI-line.

● Easy configuration via CORSL DALI USB interface and DALI-Config Software Tool.

Specifications

Electrical Data (connect L, N to the AC mains)
Input type	supply, main-voltage,50/60Hz,100mA
Markings	L, N
Input voltage range	100~240Vac
max. input supply current	100 mA
Input supply frequency	50Hz / 60Hz
Output type	DALI
Markings	DA+, DA-
Output voltage range	9,5V … 22,5Vdc according to IEC62386
Guaranteed DALl supply current	150 mA
DALI-2 addresses	1
Electrical Data (inactive 'L' and 'N'; only connect DA+,DA- to DALI-line)
Supply	via DALI signal line
Input voltage range	2 mA
typ. current consumption DALI (at 16.5V)	9,5V … 22,5Vdc according to IEC62386
DALI-2 addresses	1
Environmental Conditions
Storing and transportation temperature	-20°C ... +75°C
Operational ambient temperature (connect 'L' and 'N')	-20°C ... +55°C
Operational ambient temperature (inactive 'L' and 'N')	-20°C ... +75°C
rel. humidity, none condensing	15% ... 90%

General Data
Protection class	II in intended use
Protection degree housing	IP40
Protection degree terminals	IP20
Mounting	back box
Terminals
Connection type	screw connector
Wire size solid core	0,5 ... 2,0 mm² (21 ... 14AWG)
Wire size fine wired	0,5 ... 2,0 mm² (21 ... 14AWG)
Wire size using wire end ferrule	0,3 ... 1.5 mm²
Stripping length	6~7 mm
Standards
DALI	IEC62386-101, IEC62386-102, IEC62386-103, IEC62386-301, IEC62386-302
Markings	DALI-2
