ROT-L

DALI-2 Rotary Switch

  • ● DALI-2 rotary and push button with DALI output for fast and precise control of switching, brightness, or colour temperature.
  • ● Multiple operating modes for dimming and switching.
  • ● can work in 'input device' or 'application controller' mode:
    • ➜ input device : generate event messages that are interpreted and processed by higher-level control units (support IEC62386-103).higher-level control units (support IEC62386-103) gives direct DALI control commands that are immediately executed by the DALI drivers.
    • ➜ application controller : gives direct DALI control commands that are immediately executed by the DALI drivers.
  • ● Individual DALI Commands and operating modes can be assigned to the push and rotary button.
  • ● In addition to the standard DALI commands, the application controller also supports DALI DT8 TC control.
  • ● Easy configuration via CORSL DALI USB interface and DALI-Config Software Tool.
DALI-2 RM5 Relay Module
Product types
Art. Nr.: 8980030321120ROT-L✓
Specifications
Electrical Data
Supplyvia DALI signal line
typ. current consumption DALI (at 16.5V)2 mA
Max. current consumption DALI (Inrush current at 22.5 V)8 mA
DALI-2 addresses1
Environmental Conditions
Storing and transportation temperature-20°C ... +75°C
Operational ambient temperature-20°C ... +75°C
rel. humidity, none condensing15% ... 90%
General Data
Protection classII in intended use
Protection degree housingIP40
Protection degree terminalsIP20
Mountingback box
Terminals
Connection typescrew connector
Wire size solid core0,5 ... 2,0 mm2 (21 ... 14AWG)
Wire size fine wired0,5 ... 2,0 mm2 (21 ... 14AWG)
Wire size using wire end ferrule0,3 ... 1.5 mm2
Stripping length6~7 mm
Standards
DALIIEC62386-101, IEC62386-102, IEC62386-103, IEC62386-301, IEC62386-302
MarkingsDALI-2
Dimensions

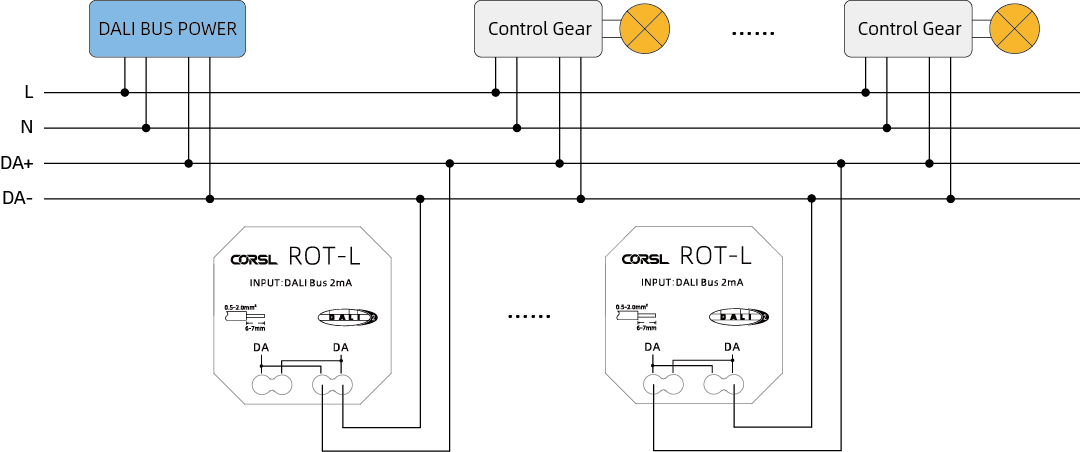

Installation Diagram
Typical Application
Installation Diagram
