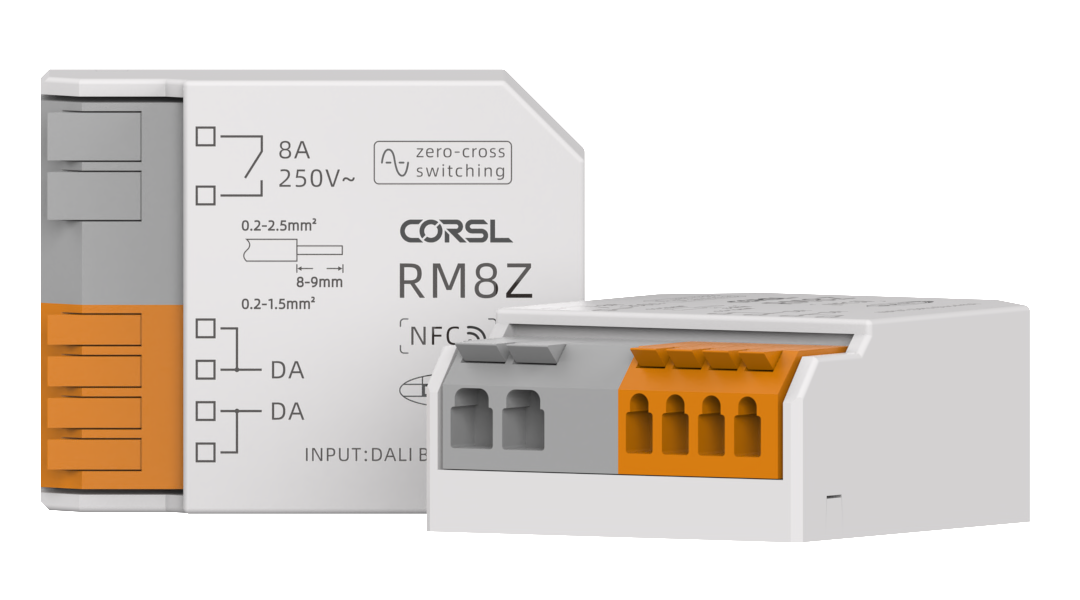

RM8Z

DALI-2 Relay Module

  • ● Compact relay module for the direct control of 230V AC loads via DALI.
  • ● Ballasts without DALI-input can be simply integrated in a DALI lighting control system. The loads can then be switched ON and OFF by DALI commands.
  • ● The DALI-2 relay module fulfils the requirements for DALI Device Type 7 - switching function.
  • ● Configurable Power-Up and System-Failure behaviour.
  • ● RM8Z is supplied directly by the DALI signal line, no additional power supply necessary.
  • ● Zero cross switching.
  • ● Easy configuration via CORSL DALI USB interface and DALI-Config Software Tool.
Product types
Art. Nr.: 8980200321120RM8Z (NFC)✓
Specifications
Electrical Data
Supplyvia DALI signal line
typ. current consumption DALI (at 16.5V)4 mA
Max. current consumption DALI (Inrush current at 22.5 V)16 mA
DALI-2 addresses1
Technical Data
Max. switching capacity (resistive load)8A 250V (AC), 5A 30V (DC)
Nominal switching capacity (resistive load)5.6A 250V (AC), 3.5A 30V (DC)
Max. switching power (resistive load)2000VA, 150W
Max. switching voltage250V (AC), 30V (DC)
Max. switching current8A (AC), 5A (DC)
Switching methodzero cross switching (AC)
Type of relay contactLatching relay
Switching operations at nominal load, resistive>105
Maximum switching frequency1Hz
Environmental Conditions
Storing and transportation temperature-20°C ... +75°C
Operational ambient temperature-20°C ... +60°C
General Data
Protection classII in intended use
Protection degree housingIP40
Protection degree terminalsIP20
Mountinginstallation box
Terminals
Connection typequick-connect terminals
Wire size (DALI terminals)0,2 ... 1,5 mm2 (24 … 16AWG)
Wire size (Load terminals)0,2 ... 2,5 mm2 (24 … 14AWG)
Stripping length8~9 mm
Standards
DALIIEC62386-101, IEC62386-102, IEC62386-208, IEC62386-251, IEC62386-252, IEC62386-253
MarkingsDALI-2

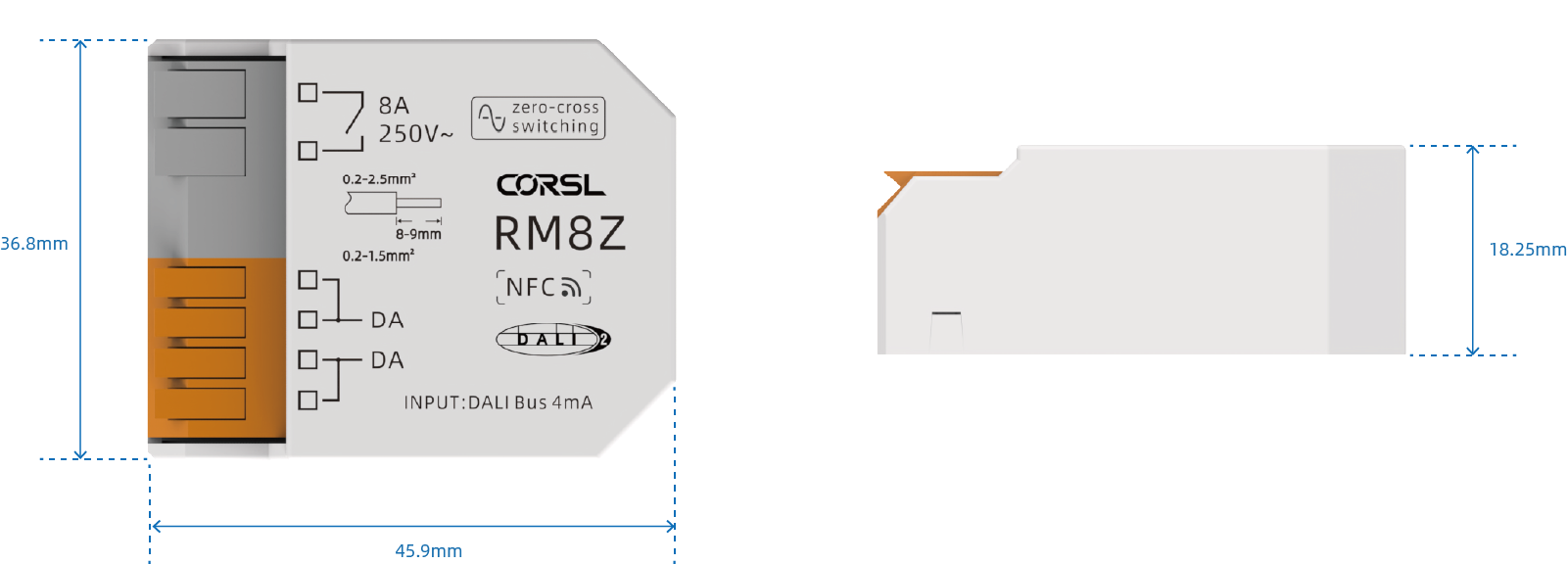

Dimensions
Installation Diagram

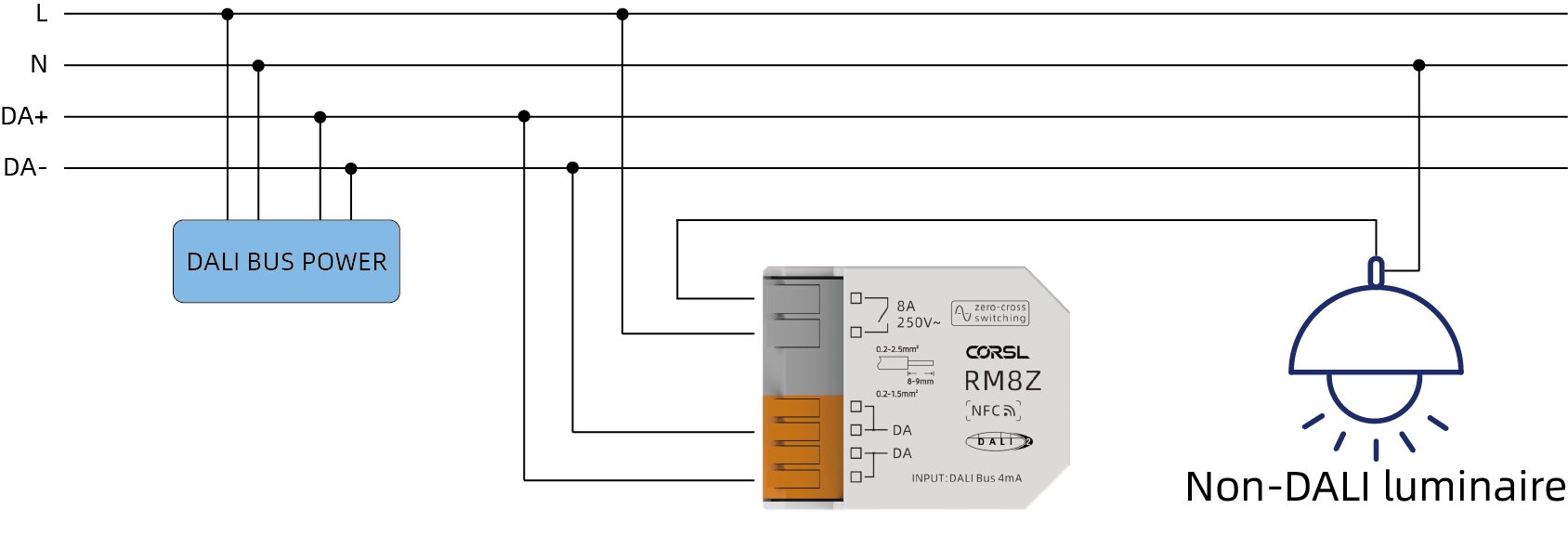

Typical Application
Installation Diagram

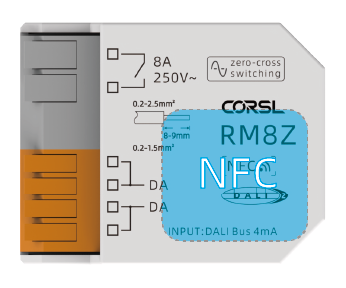

NFC antenna location
Installation Diagram
