PIR4

DALI-2 D4i Sensor Module

  • ● Movement detection (PIR) instance type 2(IEC62386-303) and light intensity measurement instance type 3 (IEC62386-304)
  • ● can work in 'input device' or 'application controller' mode:
    • ➜ input device : generate event messages that are interpreted and processed by higher-level control units (support IEC62386-103).higher-level control units (support IEC62386-103) gives direct DALI control commands that are immediately executed by the DALI drivers.
    • ➜ application controller : gives direct DALI control commands that are immediately executed by the DALI drivers.
  • ● 2 operating modes:
    • ➜ Movement triggered.
    • ➜ Movement triggered with illumination threshold.
  • ● Zhaga book18 socket.

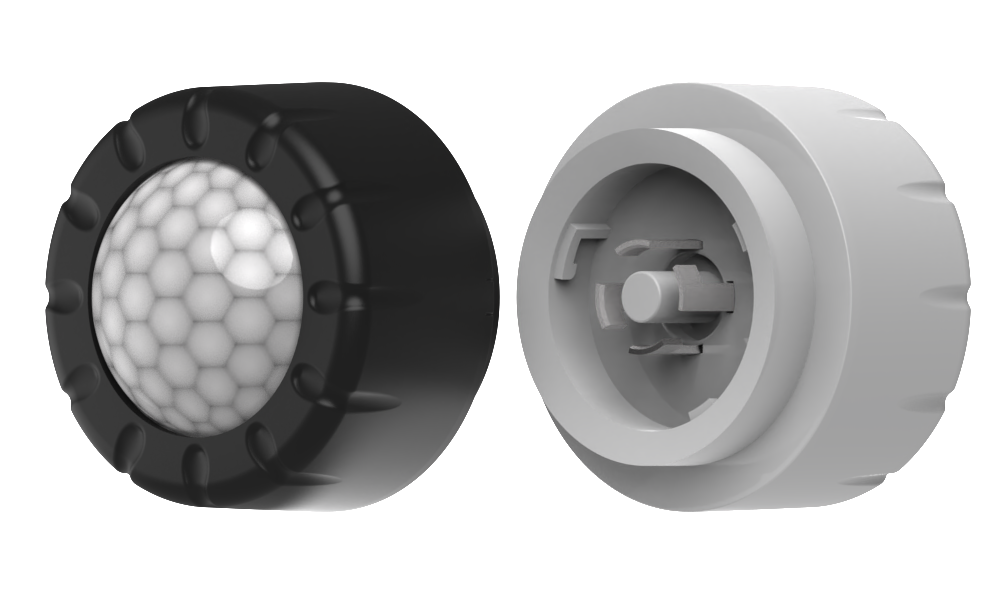

DALI-2 RM5 Relay Module
Product types
Art. Nr.: 8980150321120PIR4L D4i White✓
Art. Nr.: 8980150121120PIR4L D4i Black✓
Art. Nr.: 8980160321120PIR4L-BLE D4i White✓
Art. Nr.: 8980160121120PIR4L-BLE D4i Black✓
Specifications
Electrical Data
Supplyvia DALI signal line
typ. current consumption DALI (at 16.5V, PIR4L)4 mA
typ. current consumption DALI (at 16.5V, PIR4L-BLE)7 mA
Max. current consumption DALI (Inrush current at 22.5 V, PIR4L)8 mA
Max. current consumption DALI (Inrush current at 22.5 V, PIR4L-BLE)16 mA
DALI-2 addresses1
Technical Data
Detection range4m
Typical mounting height8m
Horizontal±60°
Vertical±50°
Light sensor (IEC62386-304)range: 0~910lux, events: 0~1023(10bit)
Environmental Conditions
Storing and transportation temperature-20°C ... +70°C
Operational ambient temperature-20°C ... +60°C
rel. humidity, none condensing15% ... 90%
General Data
Protection classII in intended use
Protection degree housingIP65
Terminals
Connection typeZhaga book18 socket
Standards
DALIIEC62386-101, IEC62386-102, IEC62386-103, IEC62386-303, IEC62386-304, IEC62386-351
EMCEN IEC 61547, EN IEC 55015
ROHSIEC 62321
MarkingsDALI-2 D4i

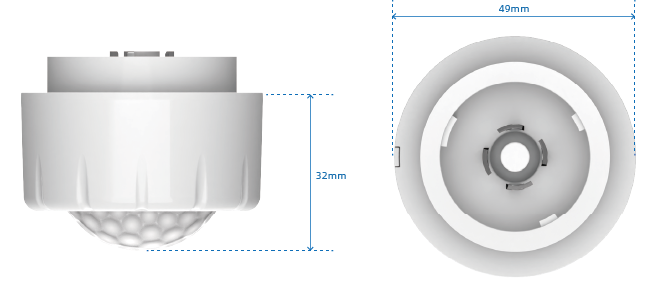

Dimensions
Installation Diagram

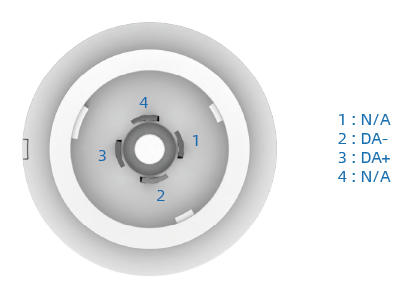

Typical Application
Installation Diagram
