PIR2

DALI2 Sensor Module

  • ● Movement detection (PIR) instance type 2(IEC62386-303) and light intensity measurement instance type 3 (IEC62386-304)
  • ● can work in 'input device' or 'application controller' mode:
    • ➜ input device : generate event messages that are interpreted and processed by higher-level control units (support IEC62386-103).higher-level control units (support IEC62386-103) gives direct DALI control commands that are immediately executed by the DALI drivers.
    • ➜ application controller : gives direct DALI control commands that are immediately executed by the DALI drivers.
  • ● 2 operating modes:
    • ➜ Movement triggered.
    • ➜ Movement triggered with illumination threshold.
DALI-2 RM5 Relay Module
Product types
Art. Nr.: 8980100321120PIR2L✓
Art. Nr.: 8980120321120PIR2L-BLE✓
Specifications
Electrical Data
Supplyvia DALI signal line
typ. current consumption DALI (at 16.5V, PIR2L)4 mA
typ. current consumption DALI (at 16.5V, PIR2L-BLE)7 mA
Max. current consumption DALI (Inrush current at 22.5 V)16 mA
DALI-2 addresses1
Technical Data
Detection range5m
Typical mounting height3m
Horizontal±60°
Vertical±50°
Light sensor (IEC62386-304)range: 0~910lux, events: 0~1023(10bit)
Environmental Conditions
Storing and transportation temperature-20°C ... +70°C
Operational ambient temperature-20°C ... +60°C
rel. humidity, none condensing15% ... 90%
General Data
Protection classII in intended use
Protection degree housingIP20
Protection degree terminalsIP20
Mountingsuspended ceiling
Terminals
Connection typescrew connector
Wire size solid core0,5 ... 1,5 mm2 (20 ... 15AWG)
Wire size fine wired0,5 ... 1,5 mm2 (20 ... 15AWG)
Wire size using wire end ferrule0,3 ... 1,5 mm2
Stripping length5~6 mm
Standards
DALIIEC62386-101, IEC62386-102, IEC62386-103, IEC62386-303, IEC62386-304
EMCEN IEC 61547, EN IEC 55015
ROHSIEC 62321
MarkingsDALI-2

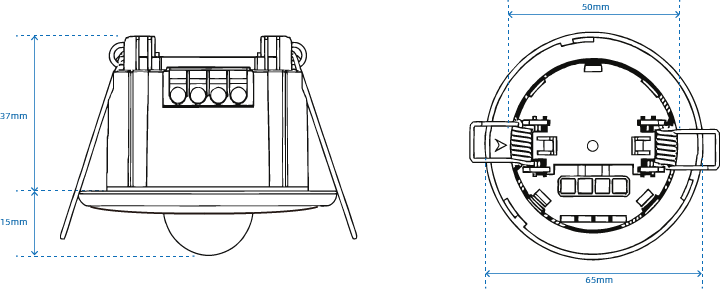

Dimensions
Installation Diagram

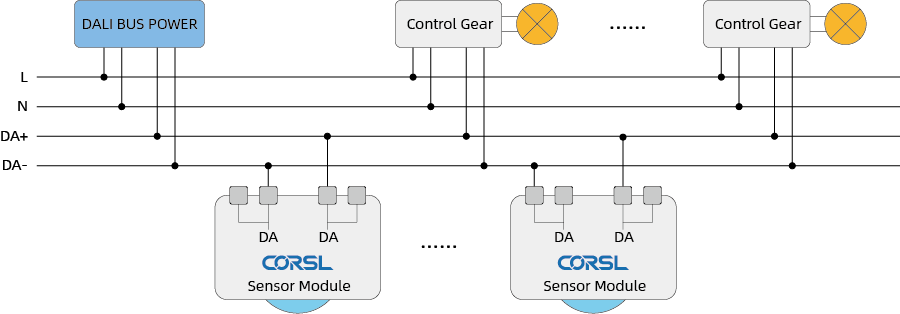

Typical Application
Installation Diagram
