DALI-2 Configuration Tool

  • ● In conjunction with the DALI-Config software, enables parameter configuration of both DALI output and input devices.
  • ● It features an integrated 80 mA DALI bus power supply for enhanced convenience.
  • ● This built-in DALI bus power supply can be intelligently enabled or disabled: when an external DALI bus power supply is detected, the internal power supply automatically turns off without requiring manual intervention.
DALI-2 RM5 Relay Module
Product types
Art. Nr.: 8980010221100DMUmini✓
Specifications
Electrical Data
Input typeUSB Type A
Input voltage5Vdc
max. input supply current500 mA
Output typeDALI
MarkingsDA+, DA-
Output voltage range9,5V … 22,5Vdc according to IEC62386
DALI bus power can supply80 mA
Environmental Conditions
Storing and transportation temperature-20°C ... +75°C
Operational ambient temperature-20°C ... +75°C
rel. humidity, none condensing15% ... 90%
Terminals
Connection typespring terminal connectors
Wire size solid core0,5 ... 1,0 mm2
Stripping length8~9 mm
Standards
DALIIEC62386-101, IEC62386-102, IEC62386-103
MarkingsDALI-2

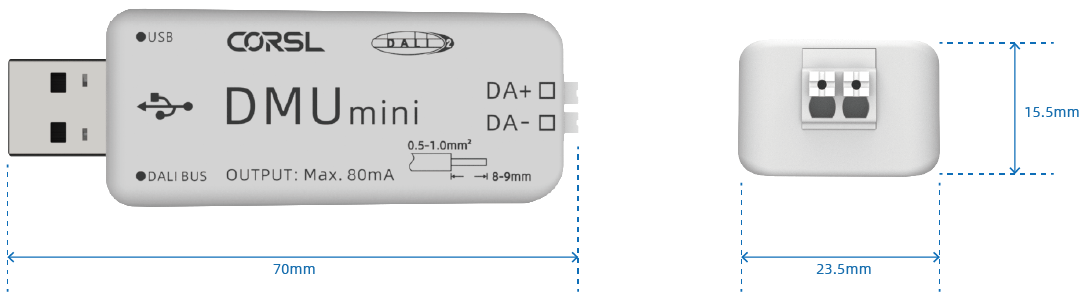

Dimensions
Installation Diagram
Typical Application

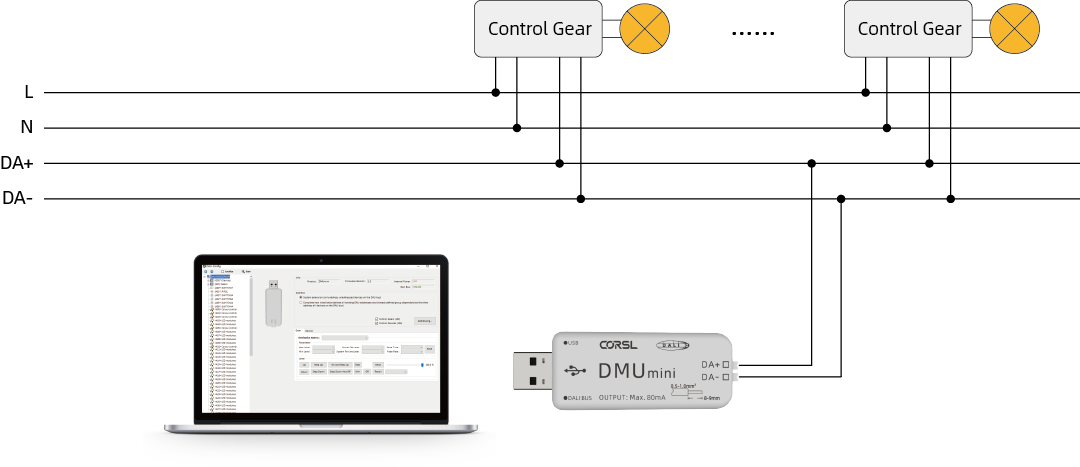

Installation Diagram
